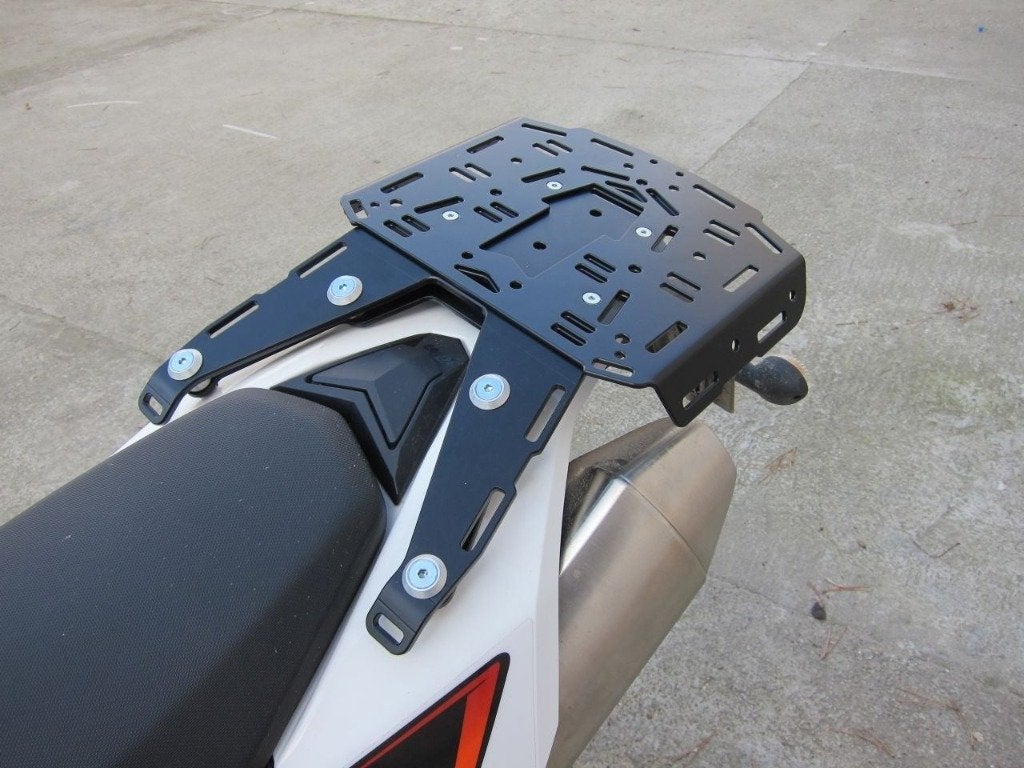

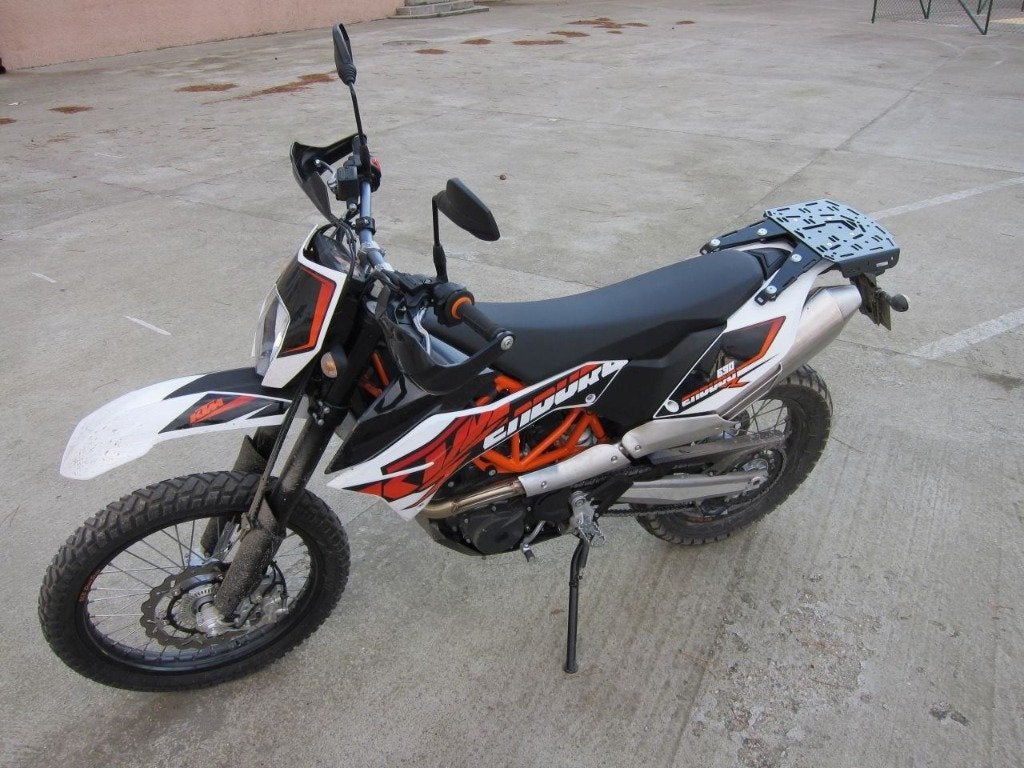

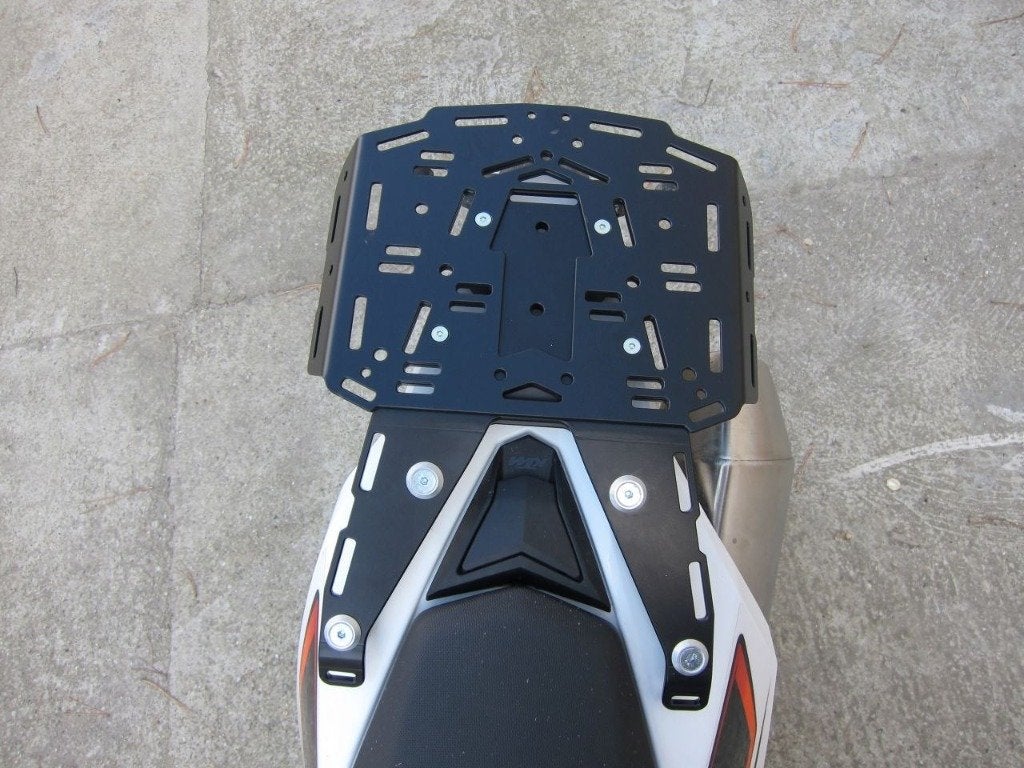

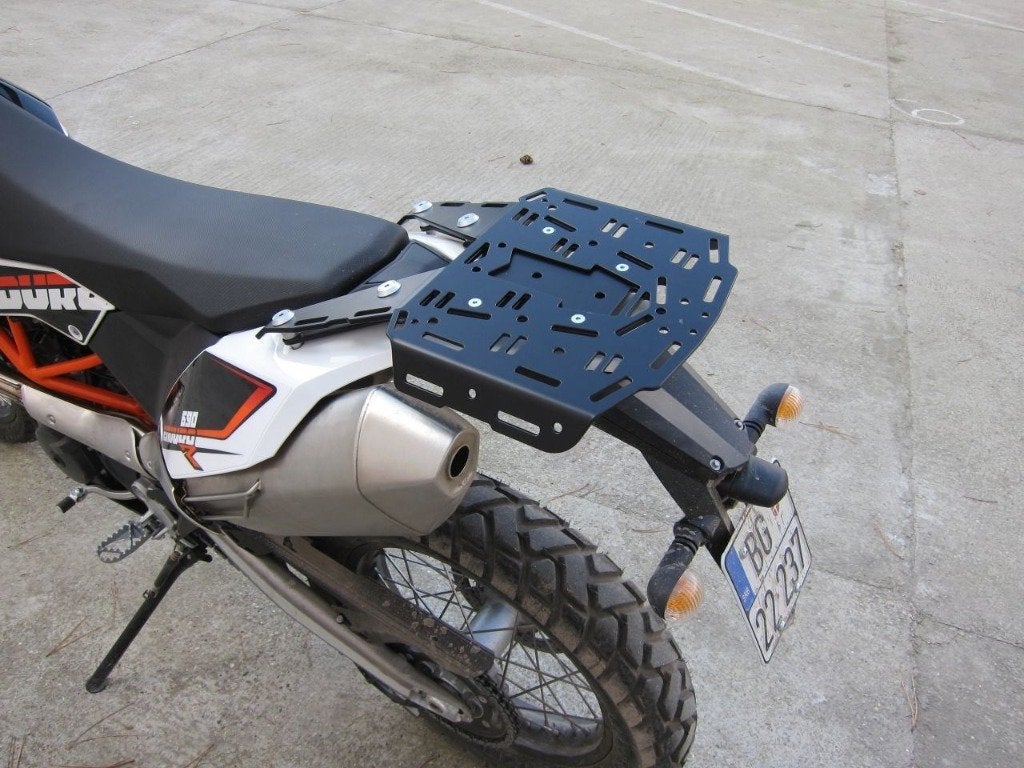

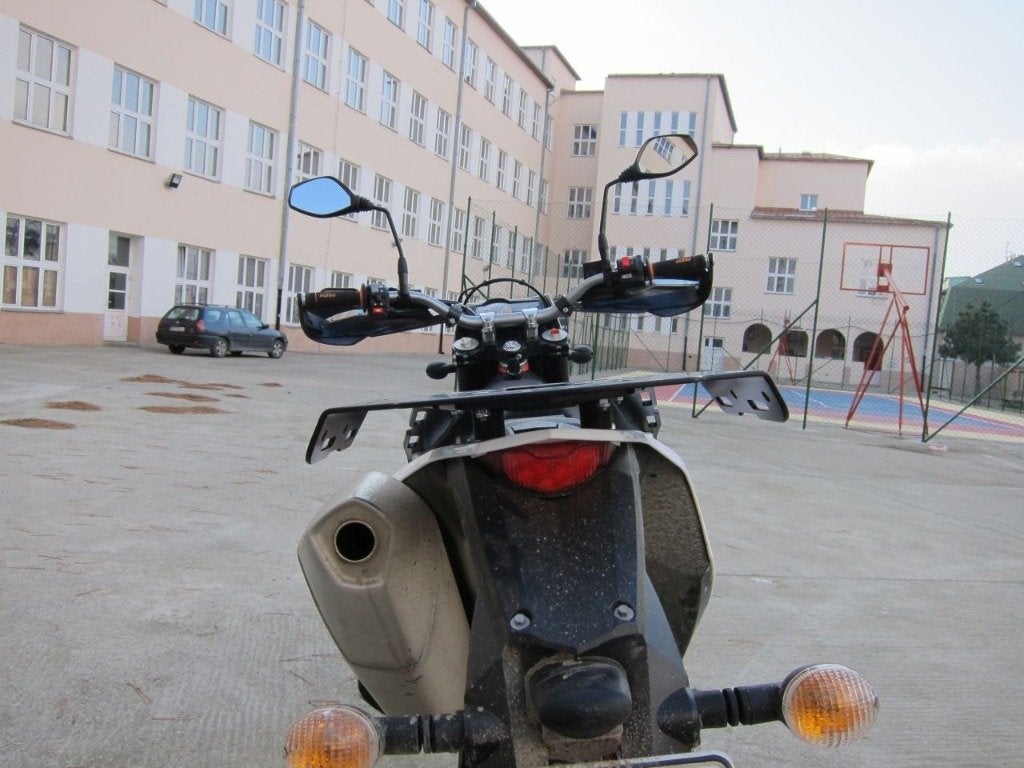

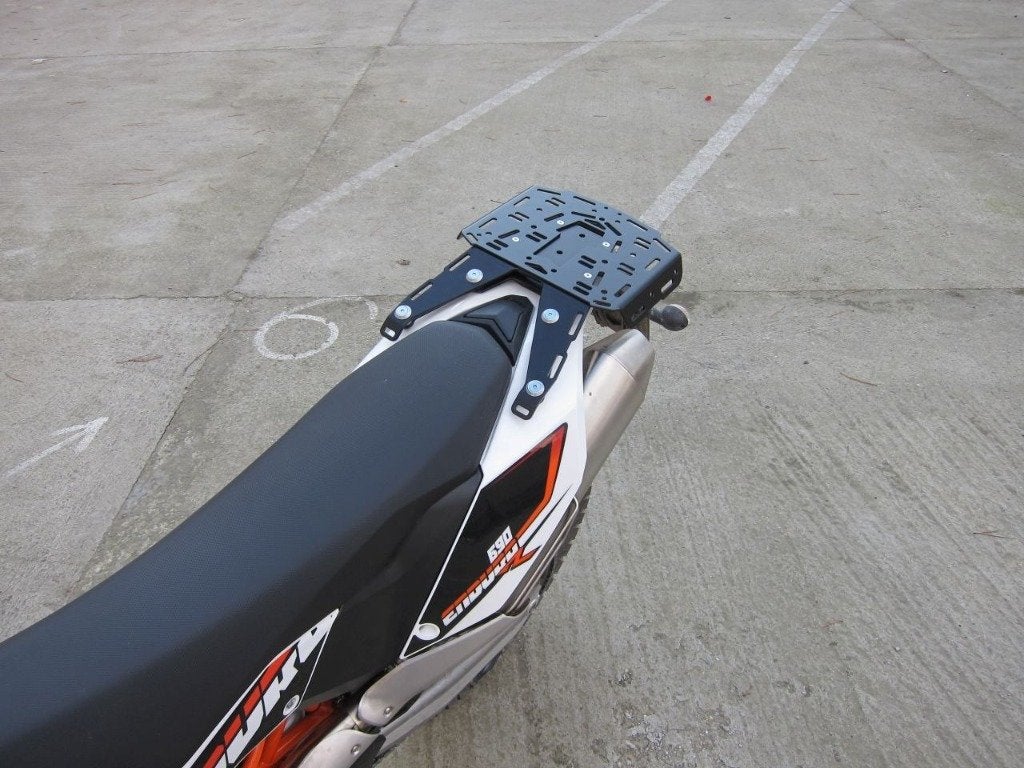

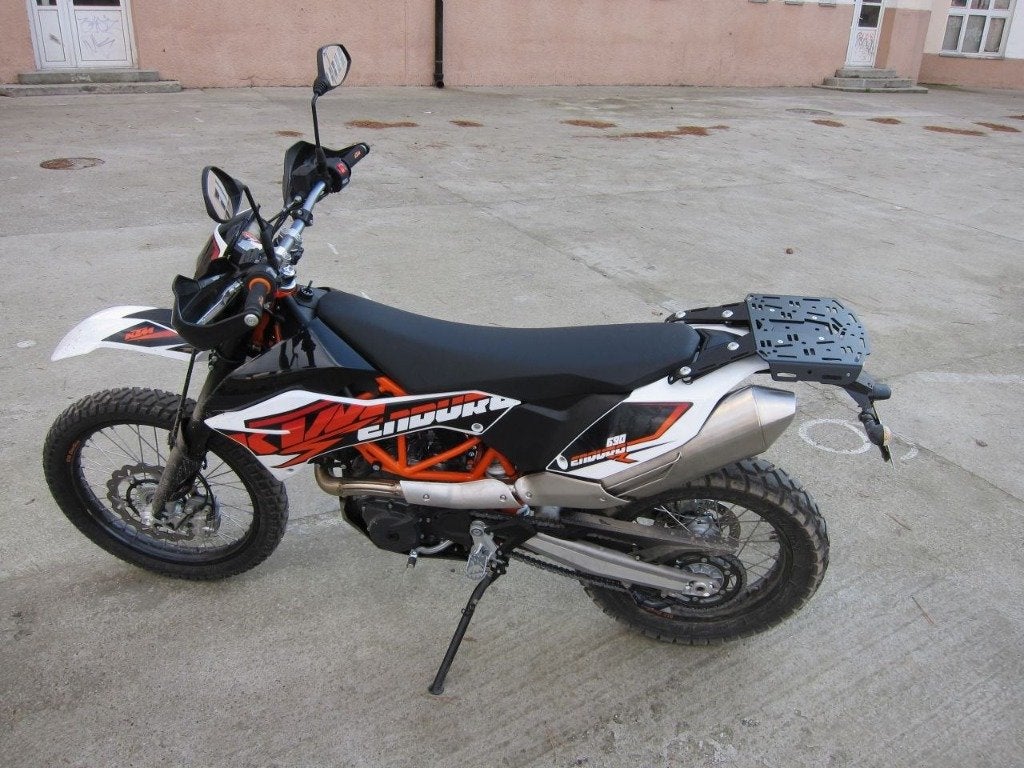

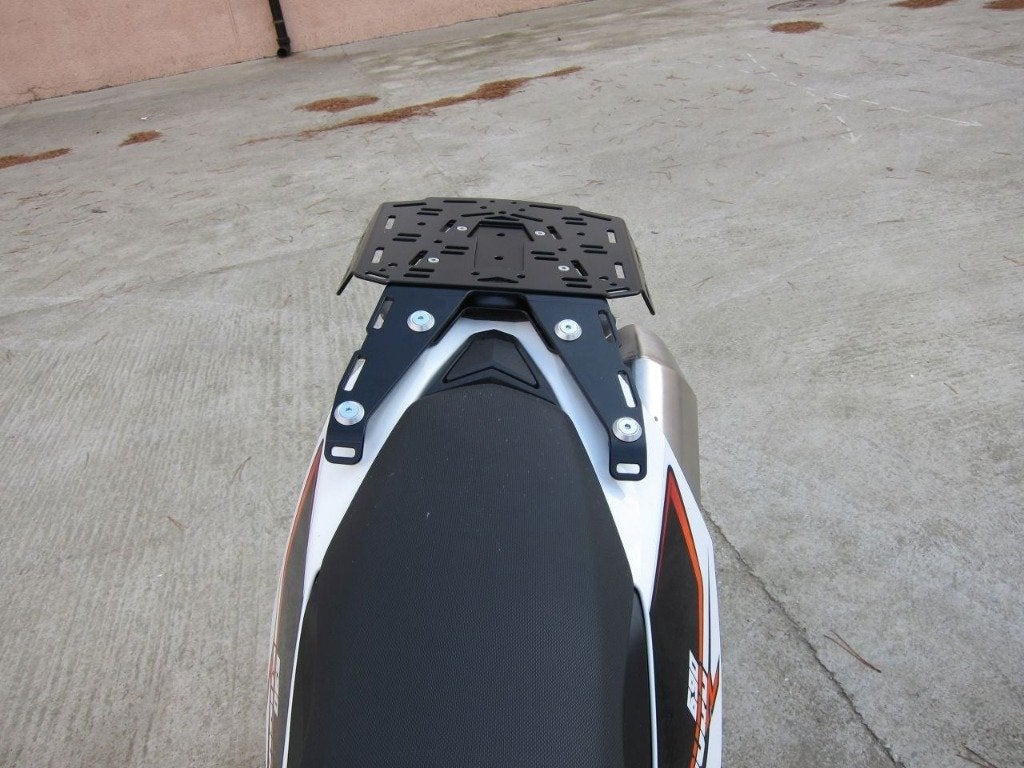

Extension plate for KTM 690 Enduro Luggage rack SD (2008-2018)

• Thirty eight slots - strapping points for all kind of soft luggage, tool bags or small roll bags,

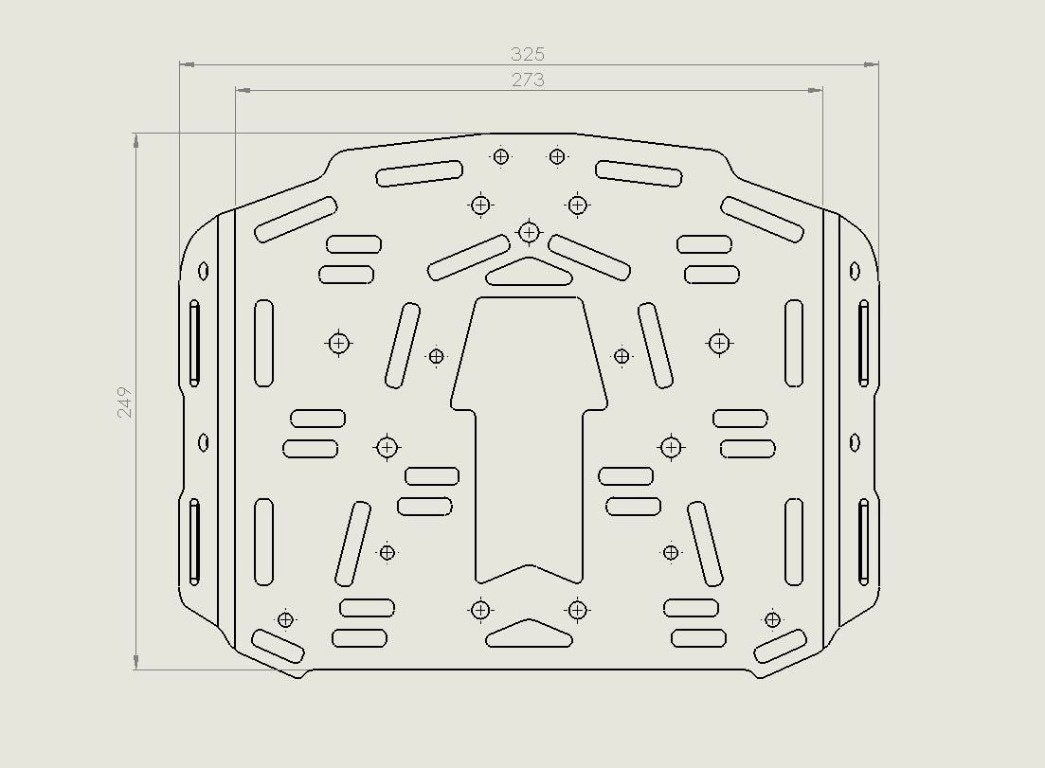

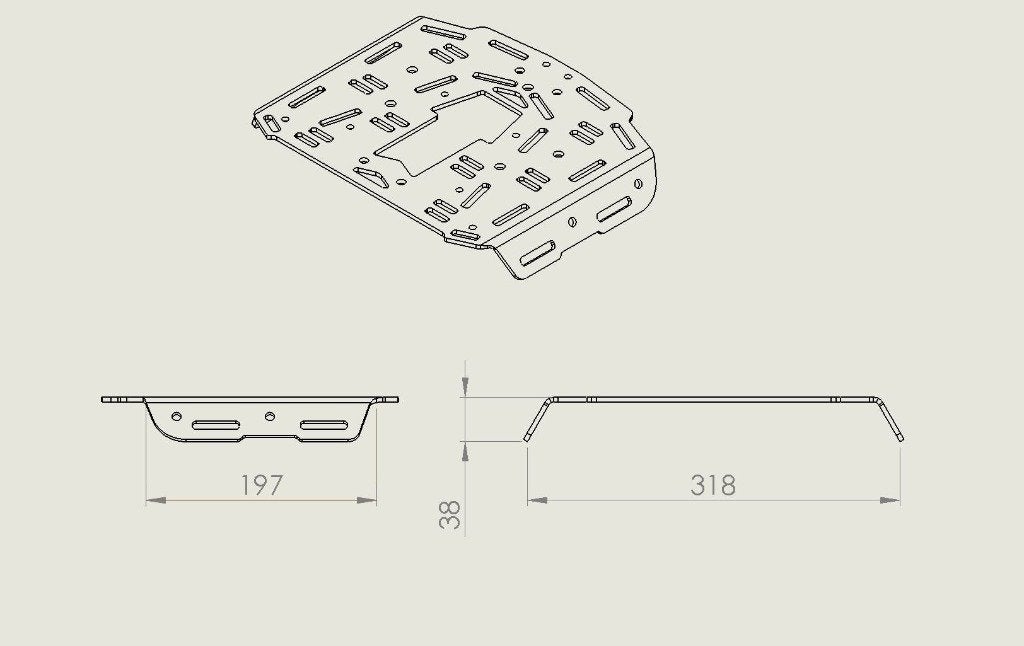

• Extended top surface - approx. 273 (W) x 249 (L) of completely flat top surface,

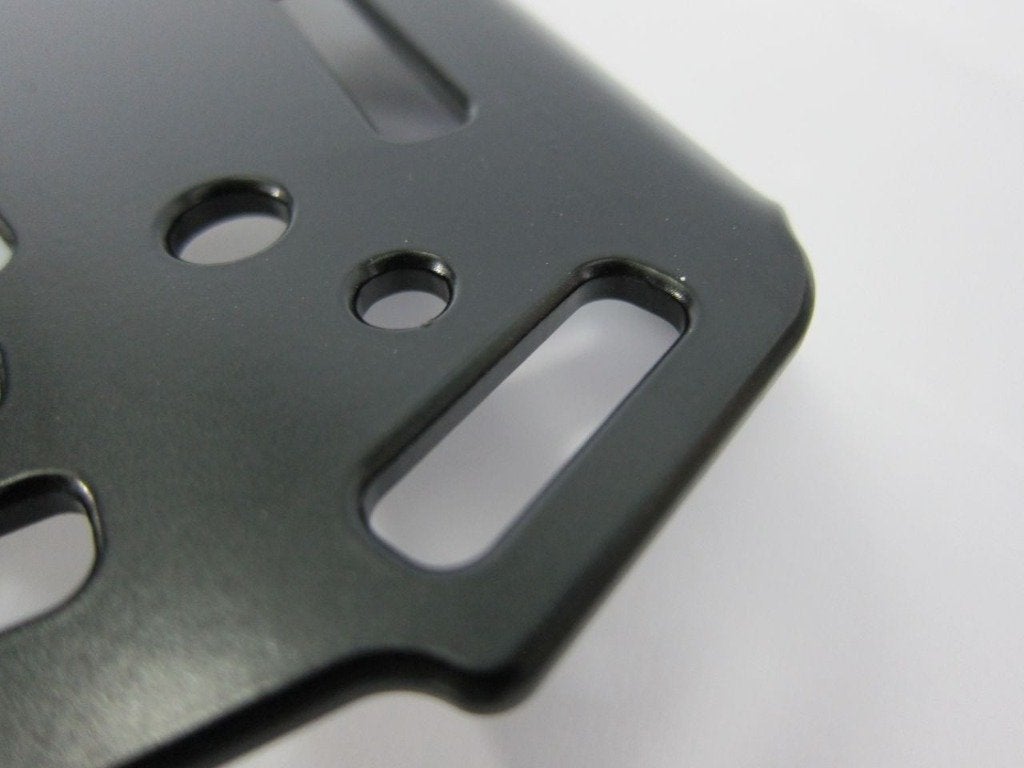

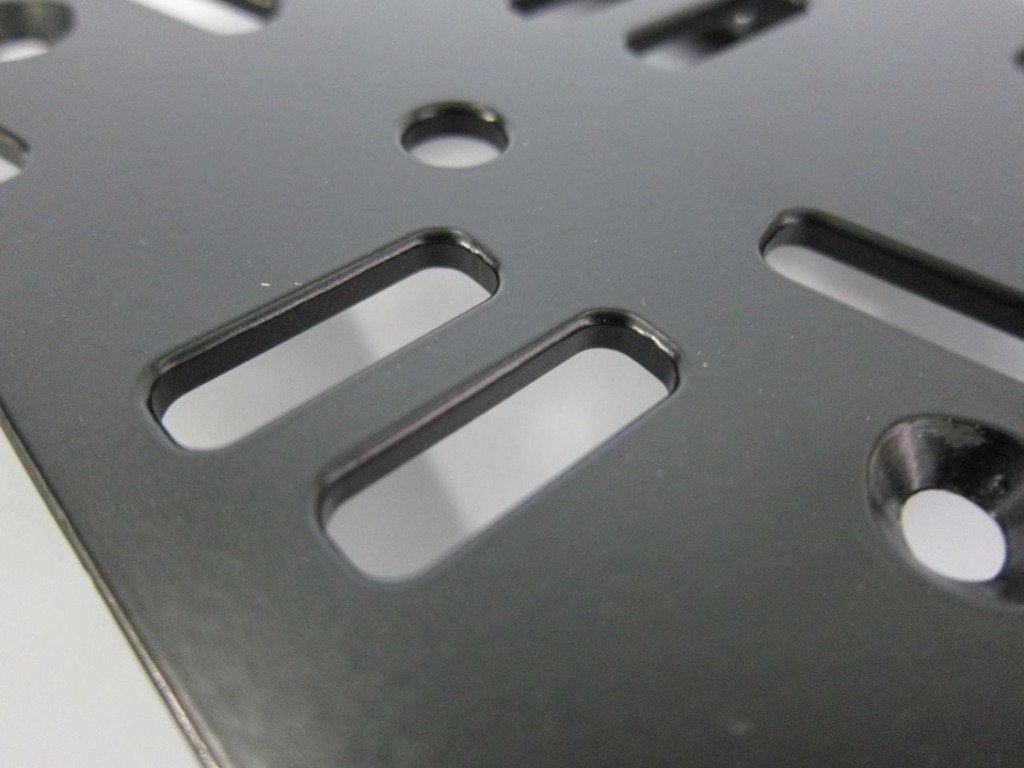

• Strap-friendly -  chamfered, smooth edges of the Extension plate and slots,

• Holes for Rotopax mount, for 1 gallon Rotopax fuel or water can,

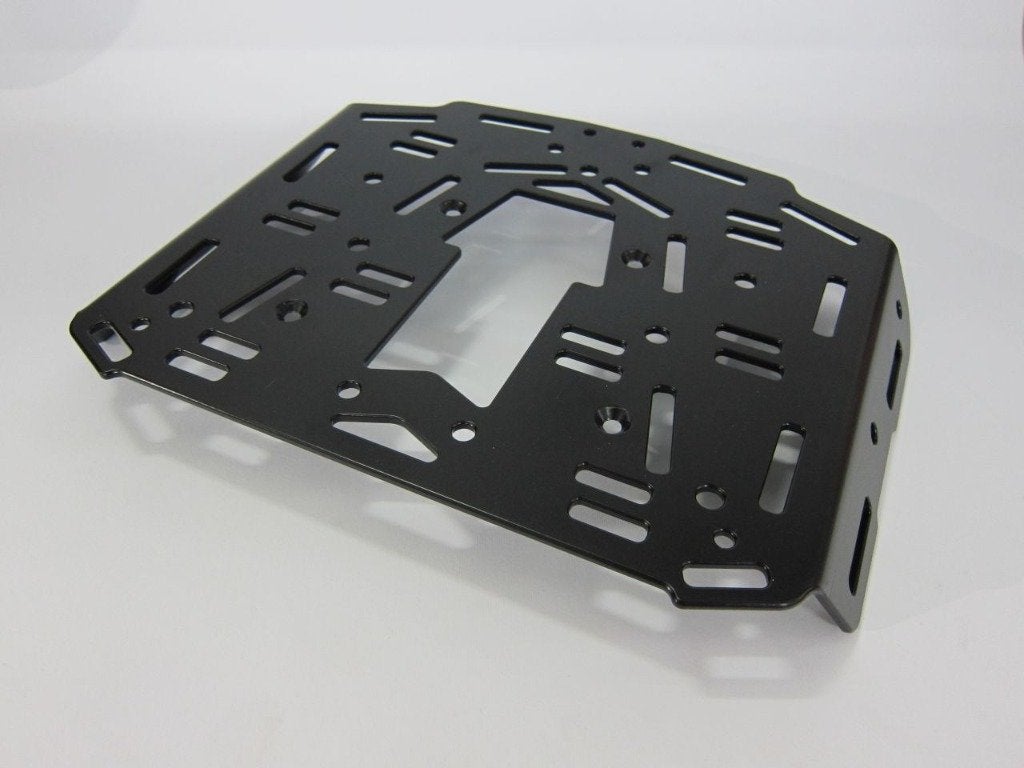

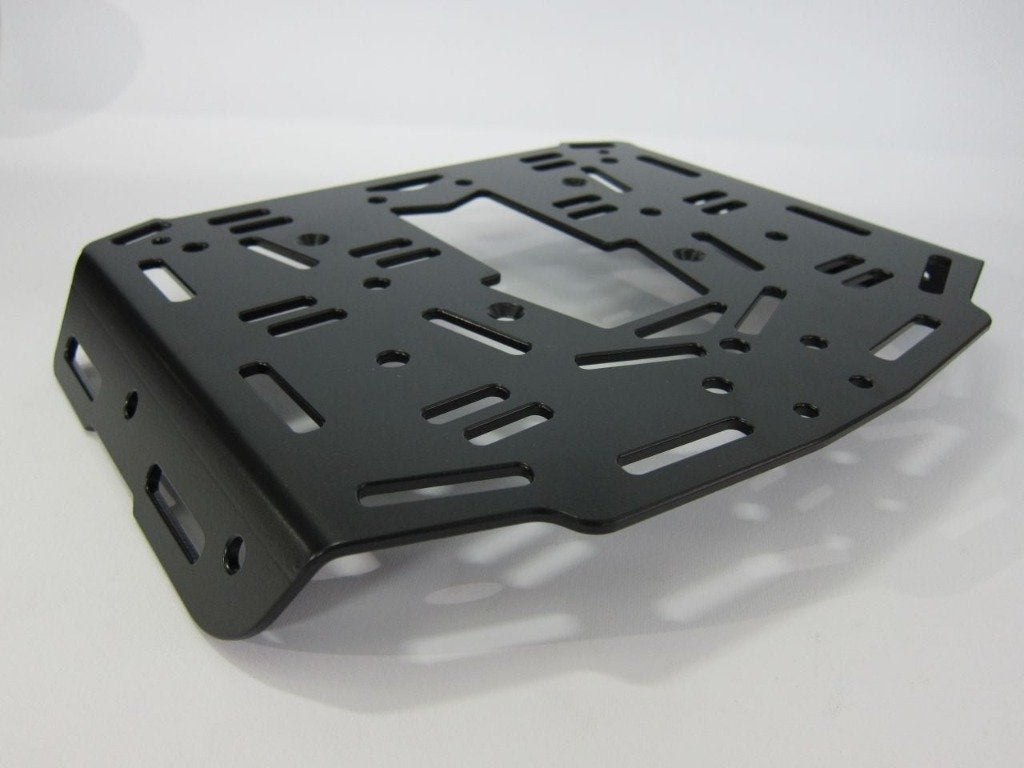

• Strong and safe - made of 4 mm aluminum (AlMg3 H22 - 5754) with side flanges bent downwards for added strength and rider protection,

• Eleven 8 mm holes for RAM mount (GoPro or other action cameras),

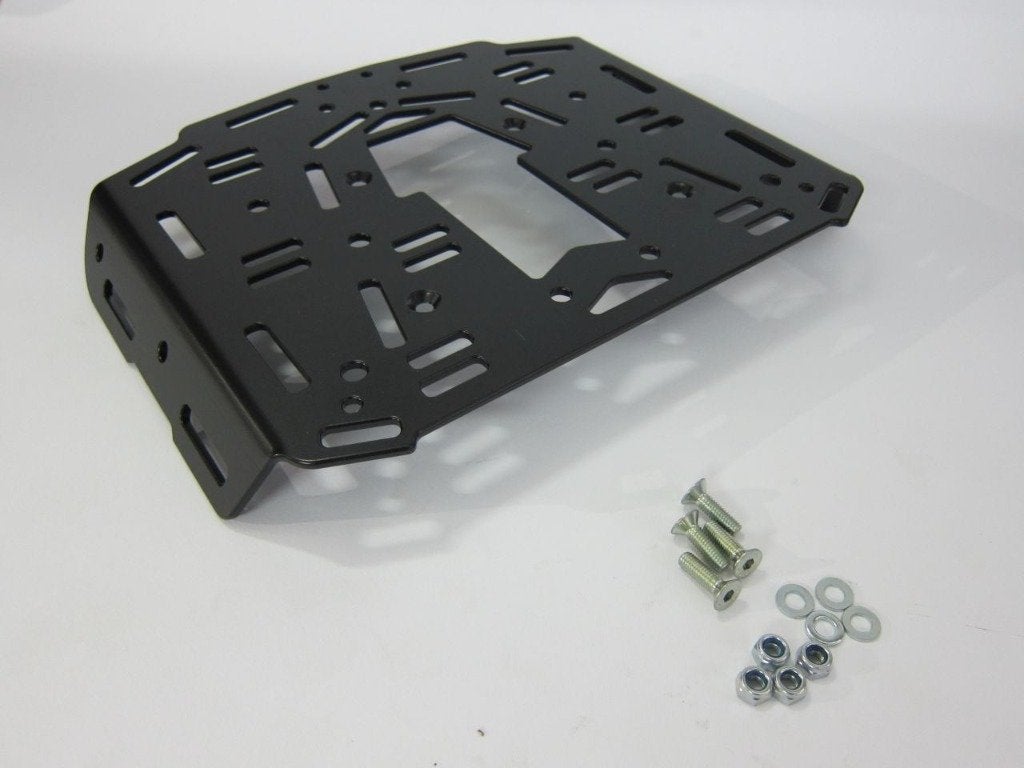

• All necessary hardware provided - high quality 10.9 zinc coated bolts, washers and nuts,

• High quality powder coating - matte black.

• Adds only 0.7 kg, including mounting hardware.

For Extension plate goes the same as for Luggage rack - it was designed to carry lighter soft bags and/or Rotopax container (1 gallon). It can carry as much weight as mounting points (threaded inserts in the plastic tank) can endure, but I don't recommend putting more then few kilograms to the back, because of possible bouncing issues. Check this blog post, to learn how to prevent bouncing of the rack.
